3D bioprinting is an emerging field in the field of regenerative medicine that involves the creation of three-dimensional structures using living cells, biomaterials, and 3D printing techniques. It combines the principles of 3D printing with biological materials to fabricate tissues and organs that closely resemble natural ones.
The process of 3D bioprinting typically involves the following steps:
1.Bioink preparation: Bioink is a specialized material that contains living cells and biomaterials. It is carefully formulated to provide structural support and maintain cell viability during and after the printing process.
2. Imaging and modeling: Medical imaging techniques, such as CT scans or MRI, are used to create a digital model of the desired tissue or organ. This model serves as a blueprint for the bioprinter.
3. Printing process: The bioprinter deposits the bioink layer by layer, following the digital model. Multiple printheads can be used to deposit different types of cells or biomaterials simultaneously. The cells in the bioink interact with each other and self-assemble, leading to the formation of the desired tissue structure.
4. Maturation and post-processing: After printing, the biofabricated structure requires time to mature and develop functional properties. It may be incubated in a specialized environment to promote cell growth, differentiation, and tissue formation. Post-processing steps, such as removing supporting materials or adding necessary biochemical factors, may also be performed.
Potential applications of 3D bioprinting
The potential applications of 3D bioprinting are vast and include tissue engineering, drug testing and development, disease modeling, and personalized medicine. Here are some examples:

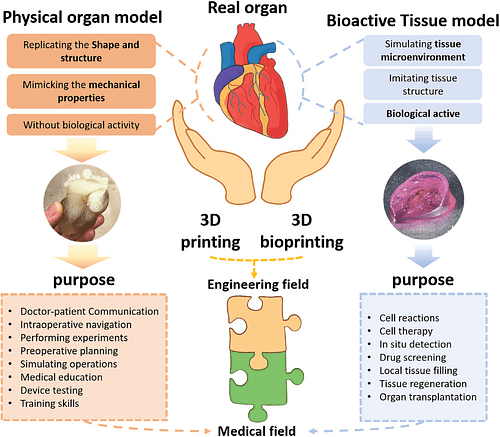

3D Bioprinting application| Source : wiki
- Tissue and organ transplantation: 3D bioprinting holds the promise of creating patient-specific tissues and organs, addressing the shortage of organ donors and the problem of organ rejection.
- Drug discovery and testing: 3D bioprinted tissues can be used to model diseases and test the effectiveness and safety of new drugs, reducing the need for animal testing and improving the accuracy of drug development.
- Research and development: Bioprinted tissues provide researchers with realistic models to study disease mechanisms, tissue development, and cell behavior in a controlled environment.
- Cosmetic and reconstructive surgery: Bioprinting can be used to create custom implants, prosthetics, and scaffolds for tissue regeneration, improving outcomes for patients.
While 3D bioprinting is a promising technology, there are still several challenges to overcome, including the complexity of recreating functional vascular networks, scaling up the production of complex organs, ensuring long-term cell viability, and ensuring the integration of bioprinted tissues with the host’s body.
Overall, 3D bioprinting has the potential to revolutionize healthcare by enabling the fabrication of functional and personalized 3D tissue printing and bioprinting organs, leading to improved treatments and better patient outcomes.
Top 3D Bioprinters
1. EnvisionTEC’s 3D Bioplotter
EnvisionTEC’s 3D Bioplotter is one of the most advanced and versatile 3D bioprinters available. It uses a syringe-based extrusion system that can handle a wide range of materials, from soft hydrogels to hard ceramics and metals.
The 3D Bioplotter can fabricate scaffolds with complex shapes and internal structures, based on 3D models and patient data. The 3D Bioplotter comes in two versions: the Manufacturer Series, which has five extruders and a high-end software package, and the Developer Series, which has three extruders and a more accessible software package.
The 3D Bioplotter is designed for working in sterile environments and is used by researchers for tissue engineering, drug delivery, and biofabrication.
You can buy the 3D Bioplotter from EnvisionTEC’s website: https://envisiontec.com
2. Allevi’s Allevi 3
Allevi’s Allevi 3 is another popular 3D bioprinter that combines multiple materials and cell types to create functional tissues and 3D printed organs. The Allevi 3 has three extruders that can print with different temperatures, pressures, and flow rates.
The Allevi 3 also has an automatic calibration system and a modular platform that can accommodate various types of printing substrates, such as Petri dishes, well plates, glass slides, and custom molds. The Allevi 3 is compatible with a variety of bioinks and biomaterials, such as collagen, gelatin, alginate, fibrin, and synthetic polymers.
The Allevi 3 is used by researchers and educators for creating skin, cartilage, bone, vascular, neural, and cardiac tissues.
You can buy the Allevi 3 from Allevi’s website: https://www.allevi3d.com
3. RegenHU’s BioFactory
Source: www.regenhu.com
RegenHU’s BioFactory is a modular and scalable 3D bioprinting platform that can produce large-scale tissues and organs with high precision and reproducibility. The BioFactory consists of multiple units that can operate independently or in parallel, depending on the desired output.
Each unit has four extruders that can print with different bioinks and biomaterials, such as hydrogels, thermoplastics, ceramics, metals, and composites. The BioFactory also has a robotic arm that can manipulate the printed structures and perform post-processing steps, such as crosslinking, washing, cutting, and seeding.
The BioFactory is controlled by a software suite that allows for easy design, optimization, simulation, and monitoring of the printing process. The BioFactory is used by researchers and industry partners for developing tissue models, organoids, implants, and bioreactors.
You can buy the BioFactory from RegenHU’s website: https://www.regenhu.com/
4. Cellink’s Bio X6
Source: https://www.cellink.com/
Cellink’s Bio X6 is a six-printhead 3D bioprinter that can print with multiple cell types, bioinks, biomaterials,and sensors simultaneously. The Bio X6 has a user-friendly interface that enables users to customize their printing parameters and protocols.
The Bio X6 also has a built-in camera that provides real-time feedback and quality control of the printing process. The Bio X6 can print with various bioinks and biomaterials developed by Cellink or other providers, such as gelatin methacrylate (GelMA), nanocellulose (NC), alginate (ALG), hyaluronic acid (HA), polyethylene glycol (PEG), polycaprolactone (PCL), and polylactic acid (PLA).
The Bio X6 is used by researchers and clinicians for creating complex and vascularized tissues, such as skin, liver, kidney, and heart.
You can buy the Bio X6 from Cellink’s website: https://www.cellink.com
5. Poietis’s NGB-R
Poietis’s NGB-R is a laser-assisted 3D bioprinter that can print with high resolution and accuracy. The NGB-R uses a laser beam to deposit droplets of bioink onto a substrate, creating layer-by-layer structures with cellular viability and functionality.
The NGB-R can print with various bioinks developed by Poietis or other providers, such as collagen, fibrin, gelatin, alginate, and synthetic polymers. The NGB-R can also print with multiple cell types, such as fibroblasts, keratinocytes, endothelial cells, and stem cells.
The NGB-R is used by researchers and cosmetic companies for creating skin models, wound healing assays, and drug screening tests.
You can buy the NGB-R from Poietis’s website: https://www.poietis.com
Conclusion
In conclusion, 3D bioprinting is a transformative technology with numerous applications in healthcare. It involves the preparation of bioink containing living cells and biomaterials, followed by imaging and modeling to create a digital blueprint.
The bioprinting process deposits the bioink layer by layer, allowing cells to self-assemble into desired tissue structures. Maturation and post-processing steps are then carried out to promote tissue formation. The potential applications of 3D bioprinting include transplantation, drug testing, research, 3D Tissue Printing, and cosmetic surgery. Despite challenges, bioprinting has the potential to revolutionize healthcare and improve patient outcomes.
FAQ
What are the steps involved in the 3D bioprinting process?
The process typically involves bioink preparation, imaging and modeling, the actual printing process, and maturation/post-processing of the printed structure.
What is bioink?
Bioink is a specialized material containing living cells and biomaterials. It provides structural support and maintains cell viability during and after the printing process.
How is the desired tissue or organ created in 3D bioprinting?
Medical imaging techniques are used to create a digital model, which serves as a blueprint for the bioprinter. The printer then deposits the bioink layer by layer, allowing cells to interact and self-assemble into the desired tissue structure.
What happens after the printing process?
The printed structure requires maturation and post-processing. It may be incubated in a specialized environment to promote cell growth and tissue formation. Post-processing steps, such as removing supporting materials or adding biochemical factors, may also be performed.
What are the potential applications of 3D bioprinting?
Some applications include tissue and organ transplantation, drug testing and development, disease modeling, and personalized medicine. It can also be used in cosmetic and reconstructive surgery to create custom implants and scaffolds.
What challenges does 3D bioprinting face?
Challenges include recreating functional vascular networks, scaling up organ production, ensuring long-term cell viability, and achieving integration with the host's body.
How can 3D bioprinting revolutionize healthcare?
By enabling the fabrication of functional and personalized tissues and organs, 3D bioprinting has the potential to improve treatments, address organ shortages, advance drug development, and provide realistic models for research and development.
